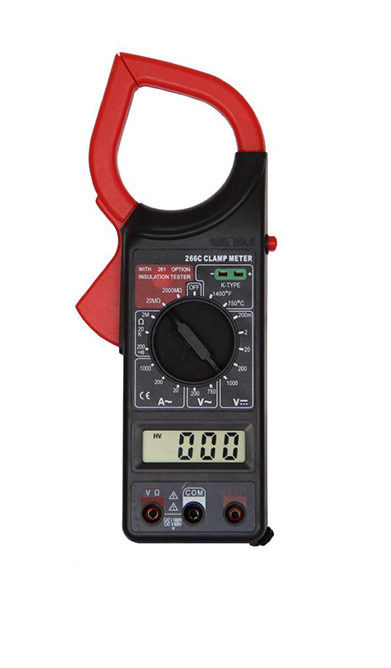

DT266 Cheap Function Multi Clamp Meter Multimeter Testing Tool
multi clamp meter multimeter
With transformer jaw,
hold button,
jaw trigger,
function switch,
LED display,
three jacks
Model | DT266 | DT266C | DT266F | DT266FT |
Overload protection | √ | √ | √ | √ |
Low battery indication | √ | √ | √ | √ |
Continuity buzzer test | √ | √ | √ | √ |
Data hold | √ | √ | √ | √ |
External mV Input terminal | √ | √ | √ | √ |
Diode test | × | × | √ | × |
DCV | 1000V | 200m-2-20-200-1000V | 2-20-200-1000V | 2-20-200-1000V |
ACV | 750V | 200-750V | 2-20-200-1000V | 200-750V |
ACA | 200-1000A | 20-200-1000A | × | × |
DCA | × | × | 200-1000A | 20-200-1000A |
OHM | 200-20KΩ(20M-2000MΩ) | 200-20K-2MΩ(20MΩ-2000MΩ) | 200-2K-20K-200K-2MΩ(20M-2000MΩ) | 200-202M K-Ω(20M-2000MΩ) |
Temperature | × | -20oC~1000oC / -4oF~1832oF | × | -20oC~1000oC / -4oF~1832oF |
Frequency | × | × | 2KHz | 20KHz |

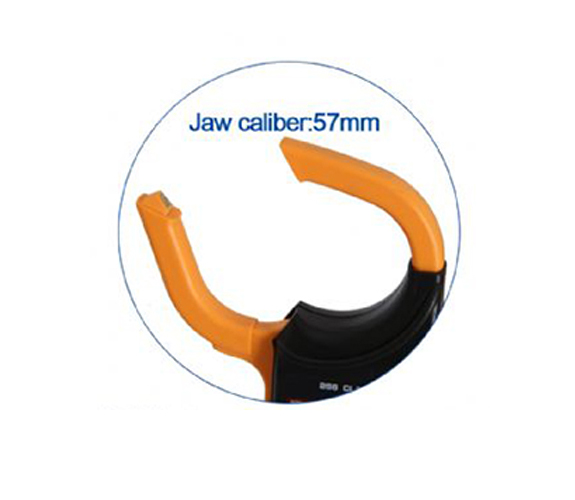

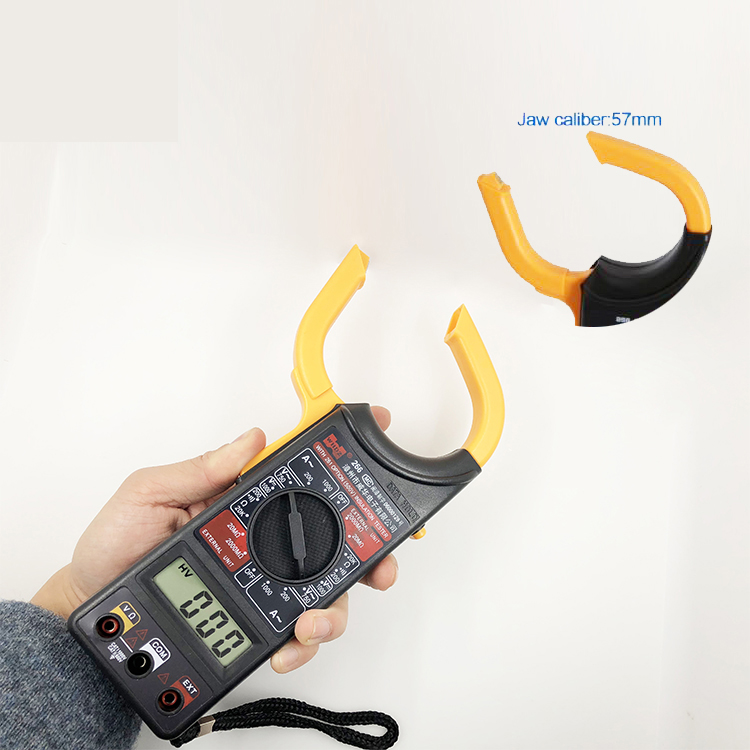

Jaw Caliber | 57mm | |||
Max display | 1999 | |||
LCD size | 49x16mm | |||
Product size | 230×68×37mm | |||
Product Weight | 202g | |||
Power supply | one 9V 6F22Battery |
