18
AC VOLTAGE TEST
Contact method from 70-250V AC
non-contact method from 70-600V AC

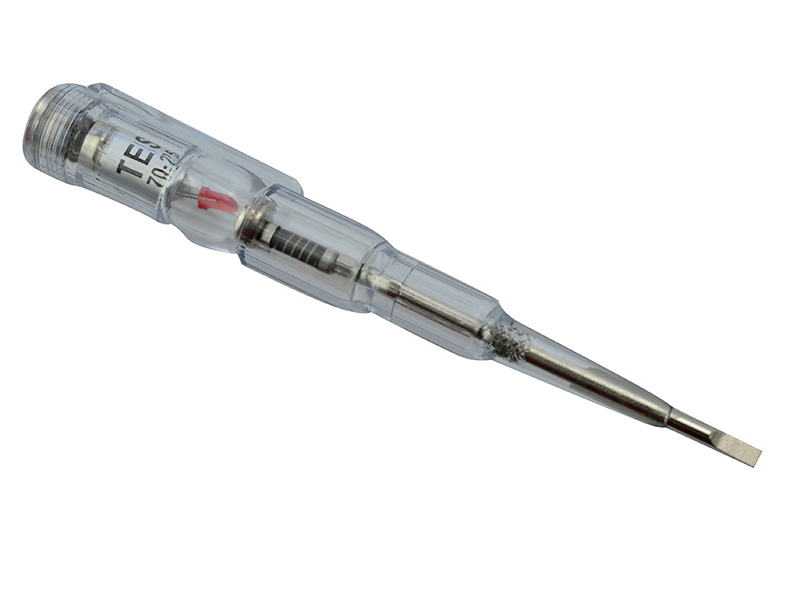

VOLTAGE TESTER AN-18 is the Latest; hi-tech: New Invention; and Safety Tester. It allows you to chech/test with safety, quickly, and accurately the following main features
1)AC VOLTAGE TEST
Contact method from 70-250V AC
non-contact method from 70-600V AC
2)DC VOLTAGE TEST
Up to 250V DC
3)POLARITY TEST:1.5V-36V DC.
4)CONTINUITY CHECK0-50M
5)MICROWAVE LEAKAGE DETECTION: =5MW/CM
Battery life: Min 5 hours of continuity operation.
HOW TO REPLACE THIE BAMTERIES
Unscrew the MAGIC SENSE (Screw)completely in anticlockwise direction, gently
straighten the wire over the batteries. Replace the batteries with NEGATIVE side at
inside position and then bend the wire back
CAUTION: I)Never attempt to take any parts out except replacing batteries
2) Do not operate the tester with the Magic sensel'removed
3).Please Secure the screw tightly(clockwise direction)
NOTES:
I. The tester should not be used to test voltages above the stated rated voltage
2. Perfect indication is only assured in temperature range from 14 to 122 F(-10'c to
+50C)and the frequency range from 50 to 500HZ
3. The perceptibility of the indication can be impaired
in unfavorable lighting conditions, (e.g. in sunlight )or in unfavorable positions, (c g
on wooden ranged ladders etc.
4. The tester must be tested for perfect function before use(self-test)
5. The tester must not be used in the presence of moisture. (e.g. dew or rain)
6. The screw-driver blade should only be used for testing voltage on live/hot parts
Other work must not be carried out without isolating the voltag
7. Damaged tester must not be used
8. Static electricity may generate by rubbing the " PLASTIC BODY thus causing false
reading(indication)
9, Never try to modify any components/parts inside the tester

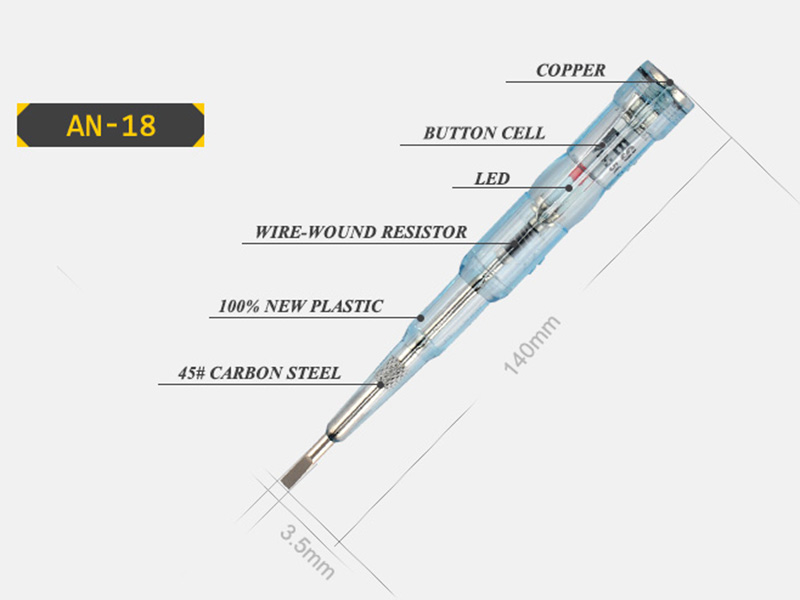

| Model | AN-18 |
| Colour | Can OEM |
| Length | 140mm |
| Blade Diameter | |
| Rate voltage range | 100-500V/AC |
| Handle meterial | AS |
| Metal meterial | Carbon steel |
| Light | LED light |
| Operating Environment | -10°C to 50°C |
| Manufacturer Guarantee | 1 year Guarantee |
| Certification | |
Warranty
●Never use on circuits over 500V AC
● Test voltage range 90-250V AC
We have more than 29 years experience in producing and selling hand-held volatge testers for home or industrial electric power testing. Engineers have professional knowledge to develop new technology for our items. We have an integrated team to service you. The quality is the soul of the enterprise.Weensure we will offer perfect service,reasonable pirce and good quality products, let you win your market .
Unit Product Net Weight: 22.38 g

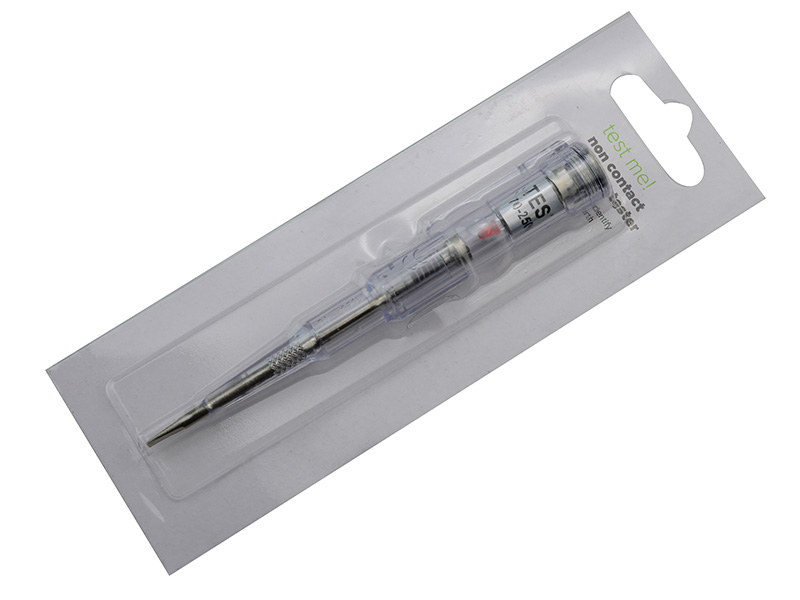

●Pieces in a Carton: 300PCS
●Unit Carton Gross Weight/Net Weight:14/13KGS
●Unit Carton Dimension: 55*27*46cm
